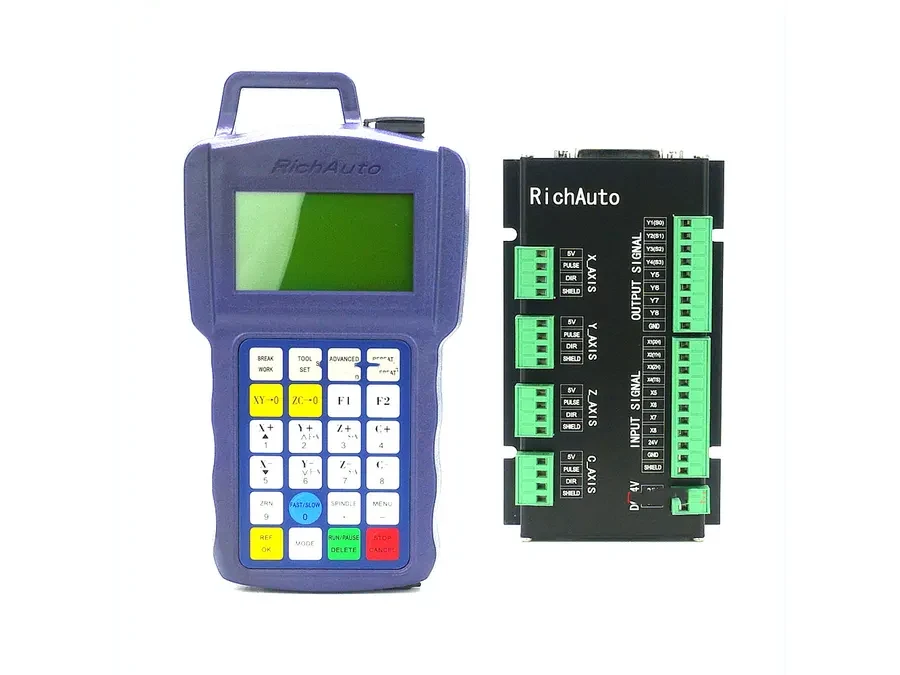

RichAuto B18 handheld controller front panel and keypad

RichAuto B18 handheld controller front panel and keypad. Reference photo; confirm the supplied controller and interface-board revision.

B1X SERIES · RA-B18

RichAuto B18 Four-Axis DSP Controller

Four-axis B1X DSP control for rotary carving and machining, with controller and interface-board matching before replacement.

Series: Browse the B1X controller range

4-Axis MotionRotary WorkB1X PlatformReplacement Check

CINKR supplies new, genuine RichAuto controllers and supports single-unit replacement orders. Eligible faults are covered by a one-year warranty. Most orders are dispatched within three working days after payment.

The supplied components, configuration, shipping cost and delivery estimate are confirmed in your quotation. Delivery, warranty and return terms.

PRODUCT GUIDE

About the B18

Four-axis B1X DSP control for rotary carving and multi-head machining, featuring 4.3-inch color LCD display and 2.0 MHz differential drive signaling.

QUICK DECISION

Know where this controller fits before you compare specifications.

BEST FIT

Choose B18 if:

  • The machine requires four-axis engraving or rotary motion.
  • The intended program fits the supplied B18 software.
  • The matching B1X board meets the machine connection needs.

CHECK BEFORE ORDERING

Confirm these details first:

  • Confirm the machine's axis configuration (4-axis) and any rotary-axis or application-specific wiring.
  • Match the existing differential drive signal, interface board and machine-side connections.
  • Confirm the exact hardware revision, power arrangement and required I/O before ordering.

CONSIDER ANOTHER MODEL IF

Consider alternatives for:

  • Simple 3-axis only
  • ATC
  • Color-screen priority

B18 for Four-Axis CNC Machines

The RichAuto B18 is an advanced industrial four-axis standalone DSP motion controller engineered for rotary carving equipment, architectural column shapers, and multi-axis CNC routers. Building upon the robust B1X platform, the B18 provides four fully interpolated motion channels (X, Y, Z, and A) paired with a high-resolution 4.3-inch color LCD display and high-speed 2.0 MHz differential driver pulse generation.

Whether carving intricate 3D spiral table legs, machining multi-sided polygonal turnings, or synchronizing dual-drive gantry axes, the B18 eliminates PC vulnerabilities and software crashes from shop floors. Its predictive look-ahead trajectory planner maintains smooth velocity transitions across high-density micro-segment toolpaths, delivering superior surface finishes on fine hardwoods, stone, and composite materials. Machine builders and retrofitters can request a B18 quote configured for their exact drive requirements.

B18, B18E, B18S and B18C: Four-Axis B1X Suffix Variants

In international markets and distributor catalogs, the controller appears under related designations including B18, B18E, B18S, and B18C:

Model Marking Keypad Faceplate Language
B18 Base 4-axis B1X controller designation
B18E English-only keypad faceplate (Export standard)
B18S Bilingual (Chinese + English) keypad faceplate
B18C Bilingual (Chinese + English) keypad faceplate

All four-axis simultaneous rotary interpolation, 2.0 MHz differential signaling, 4.3-inch color screen functions, and firmware are identical across B18, B18E, B18S, and B18C. The only distinction is the silkscreen language on the keypad buttons. Suffix designations do not change pulse rates, memory capacity, or terminal block assignments. Confirm the physical wiring layout on the breakout card, then submit an equipment inquiry.

What Ships With a B18 Controller

Standard RichAuto B18 four-axis control packages arrive with industrial components ready for cabinet installation:

  1. B18 Handheld Pendant: Ergonomic four-axis operator terminal with 4.3-inch color screen, membrane keypad, and integrated 512 MB non-volatile program memory.
  2. B1X 4-Axis Breakout Interface Board: DIN-rail interface card providing differential step/dir channels for X, Y, Z, and A axes, 16 isolated inputs, and 16 outputs.
  3. Heavy-Duty 50-Pin Interconnect Cable: Braided shielded multi-core interface cable connecting pendant to cabinet breakout board.
  4. USB PC Link Cable: Standard communication cable for computer-based file transfers and configuration backup.

Inspect terminal screw blocks and ribbon connectors for mechanical integrity prior to cabinet integration.

Fourth-Axis Requirements to Confirm

Before commissioning the B18, verify how your fourth motion channel interacts with the cutting process:

  • Continuous 4-Axis Simultaneous Carving: All four axes move in synchronized interpolation for contoured statues, artistic reliefs, and complex cylindrical turnings.
  • Indexed 3+1 Rotary Machining: Workpieces index to discrete angular positions (e.g., 0, 90, 180, 270 degrees) and lock rigid while three-axis carving routines execute on each face.
  • Rotary vs. Linear Kinematic Configuration: The fourth channel can be programmed in angular degrees (0 to 360 deg) for chuck turners, or in linear millimeters for tangential knife cutters or dual-drive gantry slaving.

Set the correct kinematic mode in machine parameters prior to establishing work zero coordinates.

B18 Connection Terminals

Cabinet wiring for the B18 terminates at the B1X interface breakout board. The board provides high-speed optical isolation across all four motion channels:

Terminal Group Terminal Identification Signal Function Electrical Specification
X, Y, Z, A Pulse/Dir PUL+, PUL-, DIR+, DIR- (per axis) Differential step and direction lines High-speed 5V RS-422 differential outputs
Auxiliary Power 24V+, GND Primary board logic and sensor power Regulated 24V DC, isolated supply
Digital Inputs (1-16) IN01 through IN16 Homing, overtravel limits, tool sensor 24V optically isolated NPN sinking inputs
Digital Outputs (1-16) OUT01 through OUT16 Spindle run, multi-speed, coolant 24V open-collector transistor outputs
Handwheel Port MPG Interface Terminals Manual pulse generator connection 5V encoder AB-phase differential input

Differential pulse lines ensure clean signal transmission over long gantry wire tracks, eliminating erratic motion caused by spindle inverter noise.

Rotary Pulse Equivalents and Mechanical Gear Reductions

Setting accurate pulse parameters for the fourth rotational axis requires factoring in motor resolution, microstepping divisor, and gearbox reduction ratios:

  • Standard Rotary Pulse Equation: Use the formula Pulse Equivalent = (Motor Steps per Rev * Driver Microsteps * Gearbox Ratio) / 360. For a 1.8-degree stepping motor (200 steps/rev) with a 3200 microstep drive divisor driving a 10:1 planetary gearbox: (200 * 16 * 10) / 360 = 88.8888 steps per degree.
  • Harmonic Drive Zero Backlash Configurations: When utilizing zero-backlash strain wave gears with 50:1 or 100:1 reduction, high pulse equivalent numbers provide extreme angular resolution. Ensure maximum commanded rotary feedrates do not saturate the 2.0 MHz output ceiling.
  • Tailstock Alignment Checks: Inspect physical chuck runout and tailstock live center height using a dial test indicator. Concentricity errors exceeding 0.05 mm induce elliptical deformation during continuous 360-degree machining.

Entering verified mechanical constants into the controller setup menu guarantees that programmed toolpath dimensions match physical component diameters.

Workpiece Centerline Finding and 3D Toolpath Zeroing

Executing cylindrical carvings without distortion requires accurate centerline location:

  • Dial Indicator Tramming: Mount a dial indicator in the machine spindle chuck and sweep across the cylindrical stock diameter. Find the peak Z height, subtract the measured stock radius, and zero the Z-axis coordinate to set the true rotational centerline.
  • Rotary Angular Work Zeroing: Position the workpiece drive chuck at its mechanical reference point, then clear the A-axis display coordinate to 0.000 degrees.
  • Safe Clearance Retract Envelopes: When generating toolpaths in CAM packages, define a cylindrical safe clearance envelope at least 15 mm larger than the maximum stock turning diameter to prevent rapid traverse tool collisions with chuck jaws or tailstock hardware.

Disciplined centerline calibration guarantees that multi-sided geometric features align with mechanical symmetry.

B18 Alarm Codes and First Checks

Diagnostic alerts on the color screen guide rapid fault isolation:

Screen Diagnostic Underlying Machine Condition Inspection Procedure
A-Axis Software Limit Commanded rotary toolpath exceeds angular travel limits Check program coordinate boundaries; jog axis in manual mode
Drive Fault Alarm Servo or stepper drive signaled an error to controller Inspect motor drive LED codes; check motor mechanical binding
Spindle Fault Input Spindle inverter tripped on overload or overheating Inspect inverter display panel; verify spindle water cooling flow
Emergency Stop Active E-stop loop opened or safety switch triggered Check normally-closed safety circuit continuity and 24V supply
Optical Sensor Blocked Rotary home switch or gantry limit triggered Clean optical switch slot; inspect proximity switch indicator LED

Isolating safety loops and drive alarms at the source prevents intermittent machine stoppages during production runs.

Information Needed for a B18 Replacement

When ordering a replacement B18 controller, provide our technical desk with the following specifications:

  1. Rotary axis reduction ratio and motor step angle to verify pulse equivalent settings.
  2. Motor drive model numbers to confirm 5V differential step/dir signal compatibility.
  3. Auxiliary cabinet voltage supplying the breakout board.
  4. Photographs of the handheld unit sticker and DIN-rail terminal connections.

Submit your machine information through our B18 quotation desk for engineering verification.

B18 vs A18 and B58

For facilities evaluating multi-axis control packages:

  • RichAuto A18: Budget-friendly 3-inch monochrome common-anode controller for standard rotary carving tables.
  • RichAuto B18: High-speed 4.3-inch color differential controller offering 2.0 MHz pulse rates, 16I/16O capacity, and advanced curve smoothing for production rotary carving.
  • RichAuto B58: Flagship 5-inch color system providing graphical toolpath simulation, industrial Ethernet networking, and multi-cylinder pneumatic head control.

SELECTION CHECKLIST

How to prepare a B18 compatibility check

  1. Confirm fourth axis motion typeDetermine whether the fourth channel controls a rotary chuck, a swiveling spindle head, or a secondary linear gantry drive motor.
  2. Review motor drive signal formatVerify that motor drives accept differential 5V step/dir inputs across all four axes.
  3. Inspect fourth axis gear reductionRecord gearbox reduction ratios and drive microstepping settings to calculate rotary pulse equivalent parameters.
  4. Check cabinet auxiliary DC voltageConfirm that electrical cabinet supplies regulated 24V DC auxiliary power to the B1X interface breakout board.

SPECIFICATIONS

B18 Technical Specifications

Compare the current B1X platform below. For an existing machine, match the controller label, interface board and software version; reference documents and photos may show earlier hardware.

Product modelB18
SeriesB1X
CPUDSP
Internal memoryAsk CINKR for the memory capacity of the supplied controller.
Display4.3-inch
CommunicationUSB / TCP/IP
Controlled axes4 axes
Control signalDifferential
Drive systemStepper / Servo — Match the supplied hardware and software version.
Inputs16 inputs
Outputs16 outputs
Additional I/OConfirm the board variant and available terminals for additional I/O.
Minimum input unit0.001 mm
Max. pulse frequency2 MHz
Power supply24V DC — Interface-board input; check its rating separately from the handle supply.
InterpolationRequest the interpolation details for the supplied software.
Breakpoint resumeRequest the operating instructions for the supplied B1X software.
Power-failure recoveryRequest the recovery instructions for the supplied B1X software.
Soft / hard limitConfirm the limit and protection configuration with the machine builder.
Password protectionRequest the protection and access settings for the supplied software.
Rotary axisSupported
ATC supportNot supported
Multi-spindle / cylindersAsk CINKR to check any cylinder-switching requirement for this B18 configuration.
Plasma controlNot supported
Handwheel / MPGSupported
Network communicationSupported — Match the supplied network interface and transfer workflow.

COMPARE RELATED CONTROLLERS

Compare B18 with Related Controllers.

Compare current platform applications, axes, display and I/O. Match the supplied board before replacement; earlier hardware may differ.

ModelMain useAxesDisplayI/ORelationship
B18Four-axis rotary machining4-axis4.3-inch16 inputs / 16 outputsSelected model
A18Four-axis rotary carvingConfirm configuration3-inch8 inputs / 8 outputsSame-class option — compare functions, wiring and signals.
B58Four-axis rotary machining with color preview4-axis5-inch16 inputs / 16 outputsSame-class option — compare functions, wiring and signals.

B18 alternatives depend on the required motion and machine functions. A related model is not a promise of interchangeable wiring or firmware.

DOWNLOADS

B18 Manuals, Wiring & Firmware

Download reference documents below. Match the controller and interface-board revision before using any wiring instructions. For a replacement or new order, request the documents for the exact supplied hardware from CINKR.

B18 Wiring Reference

Reference wiring diagrams with English labels and signal notation. Confirm the matching board revision before using them.

Free direct download

B18 Operating Manual (PDF)

Reference instructions and parameter guidance, mainly in English with some Chinese labels. These reference editions may describe earlier hardware; the supplied unit must match the document.

Request the matching files for your hardware revision.

B18 Wiring Diagram (PDF)

Reference wiring diagrams with English labels and signal notation. Confirm the matching board revision before using them.

Request the matching files for your hardware revision.

FAQ

B18 — Questions to Check Before Ordering.

What distinguishes the B18 from the three-axis B11?

The B18 adds a dedicated fourth motion channel (A axis) supporting continuous four-axis interpolation and indexed rotary machining, along with multi-cylinder pneumatic head control options and specialized four-axis homing routines.

What are the primary differences between the A18 and B18?

While both control four axes, the B18 upgrades to a 4.3-inch color LCD screen, differential driver pulse signaling (up to 2.0 MHz vs 1.0 MHz on the A18), expanded 16I/16O capacity, and advanced spline curve interpolation for superior surface finishing.

What does the B18E designation mean?

B18E designates the English-language export version of the B18 controller, featuring English keypad silkscreens and default English system firmware. Hardware capabilities and electrical pinouts are identical.

Can the fourth axis operate as a linear slave axis?

Yes. The B18 software allows configuring the fourth axis as a rotary angular coordinate (0-360 degrees) or as a linear axis (millimeters) synchronized with the Y axis for dual-motor gantry squaring.

Does B18E support differential motor drive wiring?

Yes. All B18 variants feature differential 5V RS-422 step and direction outputs across X, Y, Z, and A axes, providing superior electrical noise immunity over long cables.

Can the rotary axis on a B18S be switched to linear millimeter mode?

Yes. System parameters allow toggling the fourth channel between rotary angular degrees (0 to 360 deg) and linear millimeters for dual-drive gantry synchronization.

What is the main difference between A18E and B18E?

B18E upgrades to a 4.3-inch color LCD display, 2.0 MHz differential driver pulse rates, and advanced spline curve interpolation compared to the 3-inch monochrome A18E.
