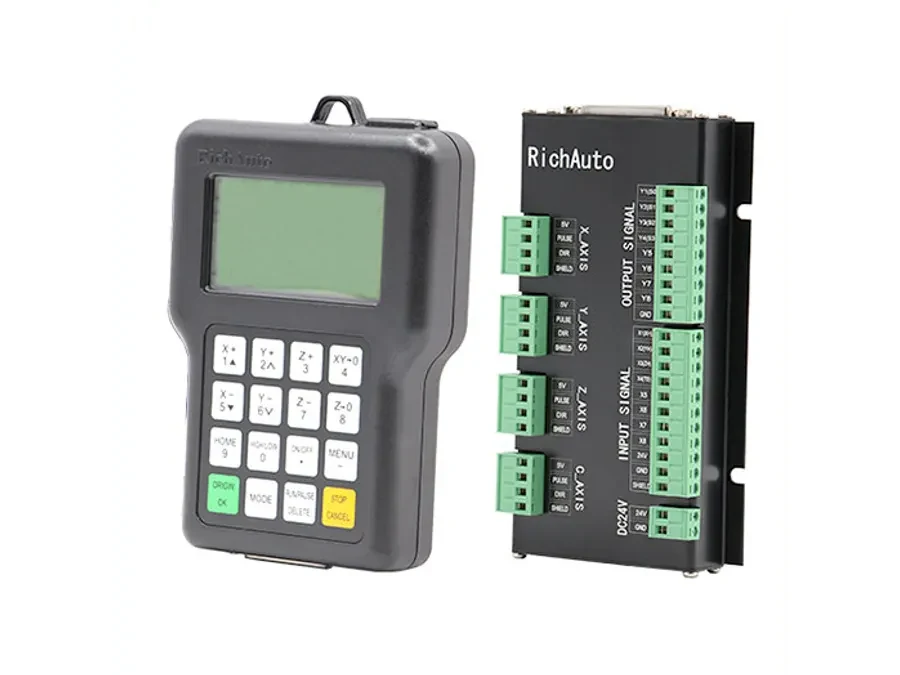

RichAuto A12 handheld controller and interface board

RichAuto A12 handheld controller and interface board. Reference photo; confirm the supplied controller and interface-board revision.

A1X SERIES · RA-A12

RichAuto A12 Plasma & Flame Cutting DSP Controller

DSP control for plasma and flame-cutting applications, with torch interfaces and the electrical environment checked before integration.

Series: Browse the A1X controller range

Plasma / Flame CuttingTorch Interface CheckA1X PlatformCabinet Wiring Review

CINKR supplies new, genuine RichAuto controllers and supports single-unit replacement orders. Eligible faults are covered by a one-year warranty. Most orders are dispatched within three working days after payment.

The supplied components, configuration, shipping cost and delivery estimate are confirmed in your quotation. Delivery, warranty and return terms.

PRODUCT GUIDE

About the A12

DSP control for plasma and flame-cutting applications, with torch interfaces, arc voltage and electrical interference checked before cabinet integration.

QUICK DECISION

Know where this controller fits before you compare specifications.

BEST FIT

Choose A12 if:

  • The machine is built for plasma or flame cutting.
  • Torch sequencing and any separate height-control device can be matched.
  • The A12 interface fits the cutting machine wiring.

CHECK BEFORE ORDERING

Confirm these details first:

  • Confirm the machine's axis configuration (configured axes) and any rotary-axis or application-specific wiring.
  • Match the existing common-anode drive signal, interface board and machine-side connections.
  • Confirm the exact hardware revision, power arrangement and required I/O before ordering.

CONSIDER ANOTHER MODEL IF

Consider alternatives for:

  • Standard 3-axis routing only
  • ATC
  • 4-axis machining

A12 for Plasma and Flame Cutting

The RichAuto A12 is a heavy-duty handheld DSP motion controller engineered specifically for industrial CNC plasma tables and oxy-fuel flame cutting machinery. Unlike conventional woodworking routers that experience steady mechanical cutting loads, thermal metal cutting systems operate in an electrically hostile production environment dominated by intense electromagnetic interference, high-voltage spark discharge during arc initiation, and thermal expansion across conductive metal plates.

Operating entirely as an embedded standalone architecture, the A12 executes interpolation directly on an internal high-speed digital signal processor. This eliminates the catastrophic communication dropouts, operating system crashes, and electrical ground loops that frequently plague office computer towers connected to plasma cutting equipment on factory floors. Operators command the entire cutting cycle from a rugged handheld pendant, navigating preheat dwell parameters, pierce height coordinates, and cutting speed overrides without stepping away from the cutting table. For machine manufacturers building new cutting tables or retrofit shops replacing obsolete PC controllers, request an A12 quote configured for your specific cutting torch power supply.

A12, A12E, A12S and A12C: Reading Plasma Controller Suffixes

CNC plasma cutting machines frequently display varying model designations across manufacturer listings, including A12, A12E, A12S, and A12C. These suffix designations identify keypad language silk-screening rather than differing internal motion capabilities:

Model Marking Keypad Faceplate Language
A12 Base plasma and flame controller platform
A12E English-only keypad faceplate (Export standard)
A12S Bilingual (Chinese + English) keypad faceplate
A12C Bilingual (Chinese + English) keypad faceplate

All plasma cutting logic, torch height control interfaces, high-voltage optical isolation, and firmware features are identical across A12, A12E, A12S, and A12C. The only difference is the button faceplate language. Operators can also switch menu languages directly in firmware settings. When replacing a unit, confirm your machine requirements, then submit an A12 equipment inquiry.

What Ships With an A12 Controller

Each standard RichAuto A12 plasma and flame cutting kit includes the industrial hardware elements necessary for electrical enclosure integration:

  1. A12 Handheld Pendant: Sealed operator pendant featuring an industrial 3-inch monochrome LCD display, tactile membrane keypad resistant to cutting slag and metal dust, and specialized thermal cutting motion firmware.
  2. Intermediate Plasma Breakout Board: Heavy-duty DIN-rail interface card equipped with high-voltage optical isolation couplers designed to intercept noise transients before they reach the motion logic bus.
  3. Double-Shielded 50-Pin Interconnect Cable: Braided multi-conductor cable delivering high-integrity digital communications between the operator pendant and cabinet terminal blocks.
  4. USB PC Communication Cable: Industrial USB data cable utilized for transferring nested G-code cutting routines and managing system parameter backups.

Examine the grounding pigtail conductor integrated into the 50-pin cable harness during assembly. Securing this shield termination directly to cabinet earth ground is mandatory for maintaining arc transfer noise protection.

A12 Arc Voltage and THC Interface

Maintaining an exact distance between the plasma torch nozzle and the steel plate is critical for edge squareness, slag prevention, and consumable longevity. Warped hot-rolled plate or thin sheet metal naturally distorts during intense thermal cutting, requiring dynamic vertical compensation. The RichAuto A12 coordinates torch elevation through dedicated interface signals:

  • Arc Transfer Input (Arc OK / Transfer Confirmation): Following pilot arc ignition, the plasma power source closes an internal dry relay contact the moment cutting current transfers through the metal plate. The A12 continuously monitors this input. Motion along the programmed cut path remains halted until Arc OK confirms that a penetrating arc is established, preventing unpierced scrap paths.
  • THC Up / Down Directional Inputs: In systems utilizing an external standalone torch height controller, the THC continuously samples divided arc voltage. When plate warpage increases or decreases arc length, the THC sends digital UP or DOWN correction pulses to the A12 interface board, prompting immediate Z-axis motor repositioning.
  • Initial Height Sensing (IHS) Coordination: Prior to firing, the torch executes an automated plate-touch sequence utilizing an electrical ohmic sensor or floating mechanical lifter switch. Once plate contact is sensed, the controller zeros the local Z coordinate and retracts to programmed pierce height.
  • Corner Kerf Inhibit Output: When navigating sharp corners or small radii, cutting speeds naturally drop. The A12 can output a corner deceleration signal to temporarily freeze THC height adjustments, preventing the torch from diving into widening kerf pools.

Never connect raw plasma arc voltages directly to the A12 terminal board. All arc voltage sampling must occur through external division circuits rated for industrial isolation.

A12 Plasma Connection Terminals

Cabinet wiring for the A12 terminates at the dedicated plasma interface breakout card mounted on the enclosure DIN rail. Terminals are isolated into discrete functional groups:

Terminal Group Terminal Identifier Connected Field Signal Electrical Characteristic
Main DC Power 24V+, GND Primary board DC logic supply 24V DC regulated, 2A isolated supply
Torch Start Relay Torch On / Arc Start Triggers plasma pilot arc or flame valve Dry contact relay closure or sinking output
Arc Feedback Input Arc OK / Transfer Cutting arc transfer confirmation 24V optically isolated digital input
THC Height Signals THC UP, THC DOWN Directional elevation commands from THC Active-low optically isolated inputs
IHS Touch Sensing Ohmic / Plate Sensor Workpiece top surface detection switch Isolated 24V digital proximity input
Corner Speed Output Kerf Inhibit / Corner Height freeze during corner deceleration Sinking transistor open-collector output
Drive Command Pulses X-PUL, Y-PUL, Z-PUL Step command outputs to axis drives High-speed common-anode optical isolators
Drive Direction Lines X-DIR, Y-DIR, Z-DIR Direction command outputs to axis drives High-speed common-anode optical isolators

Ensure that field limit switches and inductive proximity sensors share the common 24V auxiliary ground without bridging into high-voltage plasma return paths.

Two A12 Wiring Variants: Standard and Delay

Engineering documentation identifies two distinct wiring variants across the A12 family:

  • Standard A12 Interface Configuration: Designed for high-speed sheet metal plasma tables where torch height control is handled directly through coordinate interpolation or standard external THC units. It prioritizes rapid arc confirmation and high acceleration contours.
  • A12-2AXIS-Delay Configuration: Tailored for heavy plate oxy-fuel flame cutting and heavy-duty structural plasma tables. This configuration incorporates dedicated hardware delay registers that regulate pneumatic lifter dwell times, gas purge intervals, and oxygen preheat durations before commanding motion.

Examine the silkscreen markings on your existing breakout card before rewiring field connections. Matching board revisions avoids operational timing variances during torch firing cycles.

Electrical Interference Considerations

CNC plasma tables generate severe electrical transients capable of causing false limit trips or communication resets if shielding rules are neglected:

  1. Single-Point Star Grounding: Connect the machine cutting bed, plasma power unit chassis, torch cable shield, and electrical control cabinet to a single dedicated earth rod driven directly into factory sub-flooring.
  2. Cable Channel Segregation: Route high-frequency torch leads and plasma work return cables through dedicated wire troughs separated by at least 300 mm from motor step/direction and A12 50-pin control wiring.
  3. Optocoupler Power Isolation: Power the A12 breakout card from an independent 24V DC regulated switching supply that does not share DC lines with inductive solenoids or contactor coils.

Following these practices ensures uninterrupted cutting execution even on high-frequency pilot arc starting machines. To discuss specific cable shielding layouts or auxiliary relay isolation, submit your electrical cabinet details for review.

A12 Alarm Codes: Plasma-Specific Checks

When the A12 detects abnormal operating states or interrupted cutting arcs, specific diagnostic alerts appear on the handheld screen:

Screen Diagnostic Underlying Machine Condition Systematic Troubleshooting Steps
Arc Broken / Cut Abort Plasma arc extinguished during active motion Check workpiece ground clamp; inspect torch nozzle and electrode wear
No Arc OK Signal Torch fired but transfer confirmation not received Verify pilot arc ignition; check plasma output relay wiring to Arc OK terminals
THC Limit Warning Torch reached upper or lower physical lifter travel Inspect plate warpage; adjust initial torch standoff distance
Initial Height Error Ohmic clip failed to detect plate surface or stuck closed Clean slag from ohmic sensing cup; inspect floating head limit switch
Travel Overrun Limit Gantry or torch lifter contacted physical overtravel switch Jog torch manually away from sensor; verify soft limit parameter entries

Resolving torch consumable wear and grounding integrity at the source eliminates the majority of automated cut abort conditions on production plasma tables.

Information Needed for an A12 Replacement

When ordering a replacement A12 controller for an operating plasma table or retrofitting an older thermal machine:

  1. Note the brand and exact model designation of your plasma power unit (e.g., Hypertherm Powermax, Thermal Dynamics, or generic inverter).
  2. Identify the torch ignition mechanism: contact blowback starting versus high-frequency high-voltage spark starting.
  3. Record the model and interface type of your standalone torch height controller, if equipped.
  4. Provide photographs of the handheld pendant label and the cabinet interface breakout board terminals.

Submit your cutting system specifications through our A12 quotation desk to receive a verified hardware proposal.

SELECTION CHECKLIST

How to prepare an A12 compatibility check

  1. Identify cutting source specificationsRecord plasma power supply brand, pilot arc starting method (high-frequency or contact start), and arc transfer signal type.
  2. Review torch height control architectureDocument whether Z-axis motion is driven by the A12 motion loop or managed independently by a standalone THC unit.
  3. Inspect cabinet electrical groundingVerify that table earth grounds, plasma power supply grounds, and controller signal shields terminate at a common single-point star ground.
  4. Photograph existing controller wiringTake clear photographs of the intermediate breakout card terminals and cable harness labels.

SPECIFICATIONS

A12 Technical Specifications

Compare the current A1X platform below. For an existing machine, match the controller label, interface board and software version; reference documents and photos may show earlier hardware.

Product modelA12
SeriesA1X
CPUDSP
Internal memory512 MB
Display3-inch
CommunicationUSB flash drive / USB cable — Match the supplied hardware and software version.
Controlled axes3 axes
Control signalCommon-anode
Drive systemStepper / Servo — Match the supplied hardware and software version.
Inputs8 inputs
Outputs8 outputs
Additional I/OConfirm the board variant and available terminals for additional I/O.
Minimum input unit0.001 mm
Max. pulse frequency1 MHz
Power supply24V DC — Interface-board input; check its rating separately from the handle supply.
InterpolationLine / Arc / Curve — Match the supplied hardware and software version.
Breakpoint resumeSupported — Match the supplied hardware and software version.
Power-failure recoverySupported — Match the supplied hardware and software version.
Soft / hard limitSupported — Match the supplied hardware and software version.
Password protectionSupported — Match the supplied hardware and software version.
Rotary axisNot supported
ATC supportNot supported
Multi-spindle / cylindersNot supported
Plasma controlSupported
Handwheel / MPGNot supported — Match the supplied hardware and software version.
Network communicationNot supported — Match the supplied hardware and software version.

COMPARE RELATED CONTROLLERS

A12 Plasma Controller Selection

A12 serves plasma and flame-cutting machines. Router, ATC and rotary controllers are not equivalent alternatives; match the cutting sequence and machine interface.

ModelMain useAxesDisplayI/ORelationship
A12Plasma and flame cuttingConfirm configuration3-inch8 inputs / 8 outputsSelected model

A12 alternatives depend on the required motion and machine functions. A related model is not a promise of interchangeable wiring or firmware.

DOWNLOADS

A12 Manuals, Wiring & Firmware

Download reference documents below. Match the controller and interface-board revision before using any wiring instructions. For a replacement or new order, request the documents for the exact supplied hardware from CINKR.

A12 Wiring Reference

Reference wiring diagrams with English labels and signal notation. Confirm the matching board revision before using them.

Free direct download

A1X Series Manual (A11/A12/A15/A18)

Reference instructions and parameter guidance, mainly in English with some Chinese labels. These reference editions may describe earlier hardware; the supplied unit must match the document.

Free direct download

FAQ

A12 — Questions to Check Before Ordering.

What distinguishes the RichAuto A12 from router controllers?

The A12 motion system incorporates specialized firmware algorithms and input isolation specifically designed for thermal metal cutting. It features dedicated logic for pierce delays, torch ignition outputs, arc-voltage feedback monitoring, and torch height controller (THC) coordination, alongside hardened noise immunity against high-frequency arc start interference.

Does the A12 include an integrated internal arc voltage divider?

No. The A12 breakout board interfaces with an external standalone torch height controller (THC) or an external arc voltage divider supplied with your plasma power source. The A12 receives digital arc transfer confirmation and directional up/down height commands rather than raw 300V arc voltages directly.

What is the difference between standard A12 and A12-delay wiring?

Documentation identifies standard A12 and A12-2AXIS-delay wiring variants. The delay variant provides dedicated hardware timing logic for pierce dwell delays and pneumatic torch lifter sequencing required on heavy plate cutting systems.

Can the A12 be used for oxy-fuel flame cutting?

Yes. The A12 software includes parameters for preheat timing, cutting oxygen solenoid control, and ignition sequences tailored for oxy-fuel gas cutting torches.

What information is needed when replacing an A12 unit?

Specify the plasma power source model, torch height control interface signals, cabinet auxiliary DC voltage, and motor drive types. Submit photos of existing terminal blocks through our quote form.

Does the A12E have different torch height control interfaces than the A12S?

No. The A12E (English keypad) and A12S/A12C (bilingual keypad) feature identical Arc OK transfer inputs, THC up/down directional channels, and torch ignition relay outputs.

Can I change the menu language on an A12S controller to English?

Yes. A12S and A12C units feature dual-language firmware allowing operators to toggle the on-screen display language to English in the system settings menu, although keypad buttons retain bilingual silkscreens.

What should I provide when replacing an A12E plasma unit?

Record the plasma power source model, pilot arc starting mechanism, standalone THC model, and submit photographs of the breakout board terminal connections.
