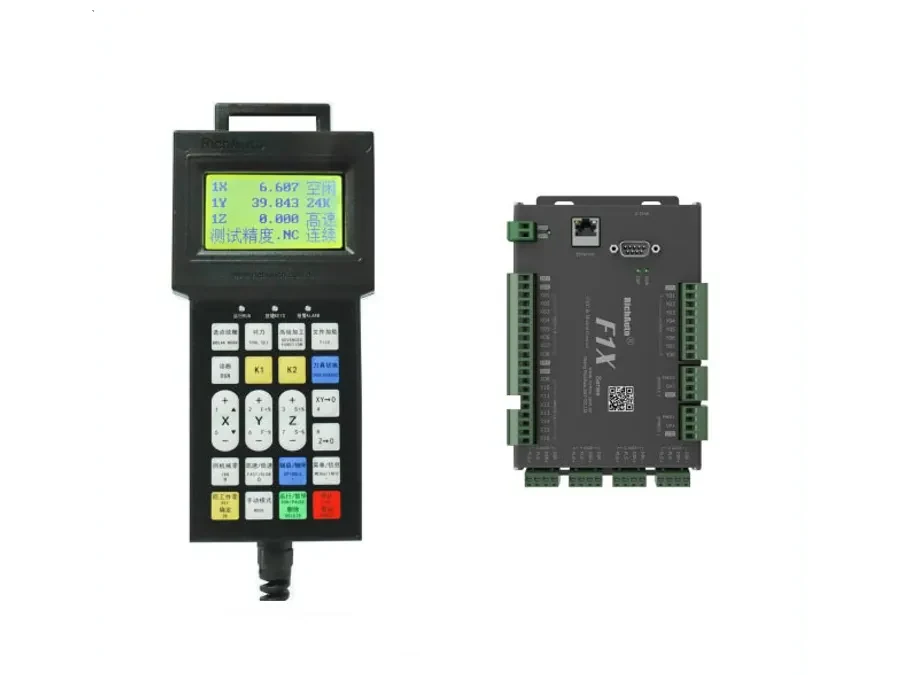

RichAuto F131 DSP Controller
Industrial 3-axis motion controller with 16I/8O, 24-key keypad and expanded processing features.
3-Axis Linkage16I/8O24-Key KeypadFloat Tool Set24V DCBreakpoint Resume
Documented model information verified.Replacing an existing controller? Send your current model label and machine configuration before ordering. We verify interface board, control signal, wiring and hardware revision wherever these affect compatibility.
IS THIS MODEL RIGHT FOR YOUR MACHINE?
F131 May Be a Good Fit If You Need:
Good fit for
- You need an industrial 3-axis controller with more I/O than 8/8
- You want a comfortable handheld with float and fixed tool setting
- You need Fast/Slow manual speed switching
- You are upgrading from an A11/B11-class 3-axis controller
Consider another model if you need
- You need 4-axis or rotary machining
- You need a color screen
- You need networked/PC control
SPECIFICATIONS
F131 Technical Specifications.
| Product model | F131 |
|---|---|
| Series | F1X |
| CPU | DSP |
| Internal memory | 512 MB |
| Display | Monochrome · 128×64 |
| Communication | U disk · USB cable |
| Controlled axes | 3 axes · XYZ 3-axis linkage |
| Control signal | Differential |
| Drive system | Stepper / Servo |
| I/O | 16 inputs / 8 outputs |
| Minimum input unit | 0.001 mm |
| Max. pulse frequency | 1 MHz |
| Power supply | 24V DC |
| Interpolation | Line, Arc, Curve |
| Breakpoint resume | Supported |
| Power-failure recovery | Supported |
| Soft / hard limit | Supported |
| Password protection | Supported |
| Rotary axis | Not supported |
| ATC support | Not supported |
| Multi-spindle / cylinders | Not supported |
| Plasma control | Not supported |
| Dispensing control | Not supported |
| Handwheel / MPG | Not supported |
| Network / PC control | Not supported |
KEY FUNCTIONS
What the F131 Brings to Your Machine.
- 3-axis linkage control with a standard 16I/8O board
- 9 workpiece coordinates and 8 breakpoint positions
- Float and fixed tool setting with configurable speed/position
- Fast/Slow manual speed switching, fine adjusting, distance mode
- Spindle and feed speed adjustment during processing
- Alarms for XYZ drivers, inverter, E-stop and hard limits
COMPARE RELATED CONTROLLERS
Compare F131 with Related Controllers.
Related options help you avoid choosing a neighboring model by accident. Cards marked “different platform” are not direct replacements.
| Model | Main use | Axes | Display | I/O | Key capability | Relationship |
|---|---|---|---|---|---|---|
| F131 | Industrial 3-axis motion controller with 16I/8O, 24-key keypad and expanded processing features. | 3 axes | 128×64 | 16/8 | Industrial 3-axis motion controller with 16I/8O, 24-key keypad and expanded processing features. | This page |
Also see:
A12, A132, A14, B57 and F1410 are special-purpose models. Related cards there show platform comparisons, not interchangeability.
REPLACEMENT & UPGRADE NOTES
Ordering F131 as a Replacement.
F131 is a platform step above A1X with more I/O. Confirm board wiring and signal type with CINKR when replacing a 3-axis controller from another series.
- Board wiring and signal type must be confirmed for cross-series replacement
DOWNLOADS
F131 Manuals, Wiring & Firmware.
Public manuals and general wiring references are free to download. Revision-sensitive firmware and diagrams are released after the controller details are verified.
F131 Step Board Wiring
Terminal definitions, interface connections and installation references.
Available after model / hardware verification — request it through CINKR.F131 Servo Board Wiring
Terminal definitions, interface connections and installation references.
Available after model / hardware verification — request it through CINKR.FAQ
F131 — Questions to Check Before Ordering.
How is F131 different from A11?
F131 uses a standard 16I/8O wiring board and a 24-button industrial keypad, giving more I/O and a larger operation surface than the compact A1X handles.
Does F131 support tool setting?
Yes, both float and fixed tool settings with easily configurable position and speed.
Can F131 handle rotary work?
No; F131 is a 3-axis controller. Choose F141 or B58 for 4-axis/rotary work.
Which machines use F131?
Advertising, woodworking, stone, mold and mechanical engraving machines with 3-axis motion.
