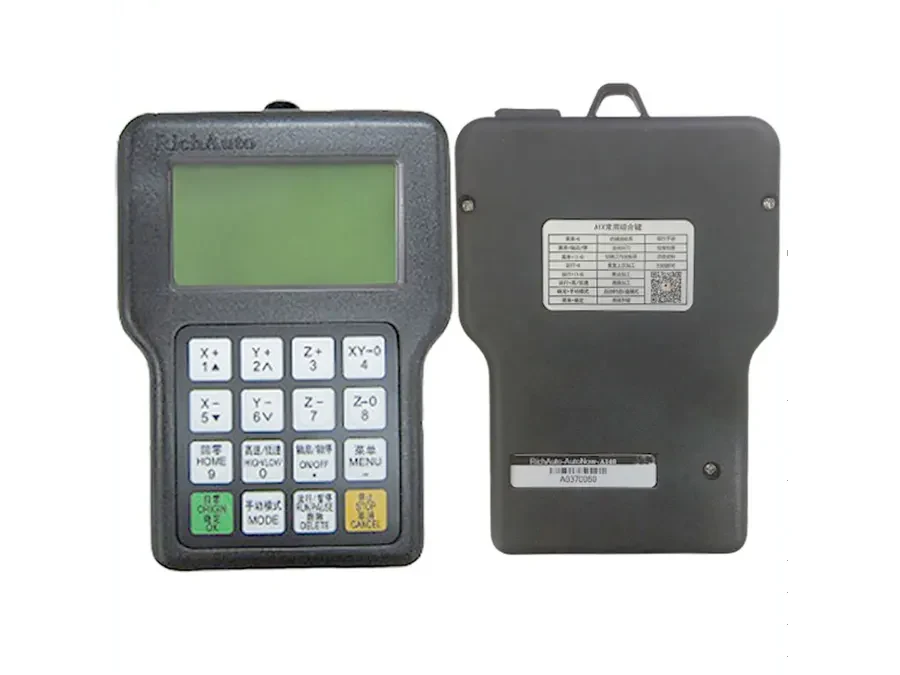

RichAuto A14 Dispensing DSP Controller
3-axis dispensing motion controller with multi-gun control and glue shut-off ahead of stop points.
Dispensing8 Gun ControlGlue Shut-OffManual Teaching24V DCUSB + U Disk
Documented model information verified.Replacing an existing controller? Send your current model label and machine configuration before ordering. We verify interface board, control signal, wiring and hardware revision wherever these affect compatibility.
IS THIS MODEL RIGHT FOR YOUR MACHINE?
A14 May Be a Good Fit If You Need:
Good fit for
- You run a dispensing or glue machine
- You need multiple gun control with shut-off timing
- You want manual teaching and coordinate input
- You are replacing an A14 or similar dispensing controller
Consider another model if you need
- You need router or engraving workflow with rotary axis
- You need ATC or plasma controls
- You want a color screen platform
SPECIFICATIONS
A14 Technical Specifications.
| Product model | A14 |
|---|---|
| Series | A1X |
| CPU | DSP |
| Internal memory | 512 MB |
| Display | Monochrome · 128×64 |
| Communication | U disk · USB cable |
| Controlled axes | 3 axes · XYZ dispensing motion control |
| Control signal | Differential |
| Drive system | Stepper / Servo |
| I/O | 8 inputs / 8 outputs |
| Minimum input unit | 0.001 mm |
| Max. pulse frequency | 1 MHz |
| Power supply | 24V DC |
| Interpolation | Line, Arc, Curve |
| Breakpoint resume | Supported |
| Power-failure recovery | Supported |
| Soft / hard limit | Supported |
| Password protection | Supported |
| Rotary axis | Not supported |
| ATC support | Not supported |
| Multi-spindle / cylinders | Not supported |
| Plasma control | Not supported |
| Dispensing control | Supported |
| Handwheel / MPG | Not supported |
| Network / PC control | Not supported |
KEY FUNCTIONS
What the A14 Brings to Your Machine.
- Supports up to eight dispenser gun controls
- Shuts down the glue gun ahead of stop points to avoid heap glue
- Manual teaching via direction keys or direct coordinate input
- Smooth curve speed regulation for quiet, steady motion
- Automatic gun-head protection
- Adjustable speed ratio while the machine is moving
COMPARE RELATED CONTROLLERS
Compare A14 with Related Controllers.
Related options help you avoid choosing a neighboring model by accident. Cards marked “different platform” are not direct replacements.
| Model | Main use | Axes | Display | I/O | Key capability | Relationship |
|---|---|---|---|---|---|---|
| A14 | 3-axis dispensing motion controller with multi-gun control and glue shut-off ahead of stop points. | 3 axes | 128×64 | 8/8 | 3-axis dispensing motion controller with multi-gun control and glue shut-off ahead of stop points. | This page |
A12, A132, A14, B57 and F1410 are special-purpose models. Related cards there show platform comparisons, not interchangeability.
REPLACEMENT & UPGRADE NOTES
Ordering A14 as a Replacement.
Dispensing wiring depends on the gun and solenoid configuration. Send machine type, gun count and current controller details so CINKR can verify the correct variant.
- Gun/valve wiring must be verified against the machine control cabinet
DOWNLOADS
A14 Manuals, Wiring & Firmware.
Public manuals and general wiring references are free to download. Revision-sensitive firmware and diagrams are released after the controller details are verified.
FAQ
A14 — Questions to Check Before Ordering.
Is A14 only for dispensing machines?
A14 is purpose-built for dispensing and glue control with multi-gun support and glue shut-off timing. It is not the general-purpose routing choice in the A1X family.
Can I teach paths without programming?
Yes. Manual teaching lets you move the equipment with direction keys or input coordinates directly into the controller.
How many guns can A14 control?
The A14 is specified with support for multiple dispenser guns up to the platform's controllable I/O.
What should I send for an A14 quote?
Machine type, gun count, wiring arrangement and current controller so CINKR can confirm compatibility.
