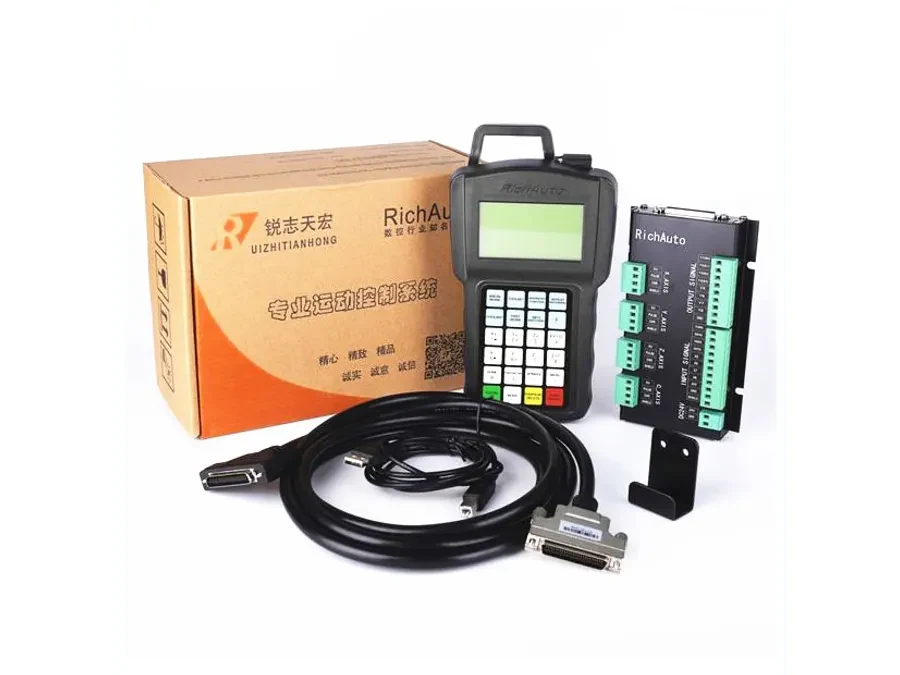

RichAuto A11 PLUS DSP Controller
Upgraded 3-axis A1X controller with more function keys, dual processing modes and enhanced safety.
3-AxisDual Processing Modes24V DCUSB + U Disk0.001 mmSafety Alarms
Documented model information verified.Replacing an existing controller? Send your current model label and machine configuration before ordering. We verify interface board, control signal, wiring and hardware revision wherever these affect compatibility.
IS THIS MODEL RIGHT FOR YOUR MACHINE?
A11 PLUS May Be a Good Fit If You Need:
Good fit for
- You currently run an A11-style 3-axis CNC and want the same workflow
- You want dual high-precision and high-speed processing modes
- You need G-code, PLT and DXF file support with larger storage
- You want reinforced U-disk port protection and safety prompts
Consider another model if you need
- You need 4-axis or rotary machining
- You need ATC or multiple spindle/cylinder control
- You want a color display or networked operation
SPECIFICATIONS
A11 PLUS Technical Specifications.
| Product model | A11 PLUS |
|---|---|
| Series | A1X |
| CPU | DSP |
| Internal memory | 512 MB |
| Display | Monochrome · 128×64 |
| Communication | U disk · USB cable |
| Controlled axes | 3 axes · XYZ 3-axis linkage |
| Control signal | Common Anode |
| Drive system | Stepper / Servo |
| I/O | 8 inputs / 8 outputs |
| Minimum input unit | 0.001 mm |
| Max. pulse frequency | 1 MHz |
| Power supply | 24V DC |
| Interpolation | Line, Arc, Curve |
| Breakpoint resume | Supported |
| Power-failure recovery | Supported |
| Soft / hard limit | Supported |
| Password protection | Supported |
| Rotary axis | Not supported |
| ATC support | Not supported |
| Multi-spindle / cylinders | Not supported |
| Plasma control | Not supported |
| Dispensing control | Not supported |
| Handwheel / MPG | Not supported |
| Network / PC control | Not supported |
KEY FUNCTIONS
What the A11 PLUS Brings to Your Machine.
- Retains the familiar A11 key layout for an easy transition
- Additional function keys for faster, simpler operation
- Two processing modes: high precision and high speed
- Safety warnings for zero-return, distance moves and over-limit
- 9 workpiece coordinates and parameter backup/restore
- Remote maintenance and system upgrade support
COMPARE RELATED CONTROLLERS
Compare A11 PLUS with Related Controllers.
Related options help you avoid choosing a neighboring model by accident. Cards marked “different platform” are not direct replacements.
| Model | Main use | Axes | Display | I/O | Key capability | Relationship |
|---|---|---|---|---|---|---|
| A11 PLUS | Upgraded 3-axis A1X controller with more function keys, dual processing modes and enhanced safety. | 3 axes | 128×64 | 8/8 | Upgraded 3-axis A1X controller with more function keys, dual processing modes and enhanced safety. | This page |
Also see:
A12, A132, A14, B57 and F1410 are special-purpose models. Related cards there show platform comparisons, not interchangeability.
REPLACEMENT & UPGRADE NOTES
Ordering A11 PLUS as a Replacement.
Because the key layout matches A11, operators can move to A11 PLUS with minimal retraining. Confirm the interface board signal type and hardware revision before replacing an older A1X controller.
- Control signal is common anode on A11 PLUS; verify against the existing board
DOWNLOADS
A11 PLUS Manuals, Wiring & Firmware.
Public manuals and general wiring references are free to download. Revision-sensitive firmware and diagrams are released after the controller details are verified.
FAQ
A11 PLUS — Questions to Check Before Ordering.
How is A11 PLUS different from A11?
A11 PLUS adds multiple function keys, a reinforced U-disk socket, dual high-precision/high-speed processing modes, and extra safety prompts. A new wiring board is also used, so verify the board and signal type before replacing an older A11.
Can existing A11 operators switch without retraining?
Yes. A11 PLUS retains the familiar user interface and key layout, so the transition is designed to be seamless for existing A11 users.
Which file formats are supported?
The A11 PLUS supports standard G-code, PLT, and DXF files generated by common CAD/CAM software.
Do I need to verify my existing wiring before replacing?
Yes. Confirm the interface board, control signal and hardware revision with CINKR so a replacement is not treated as a drop-in swap.
